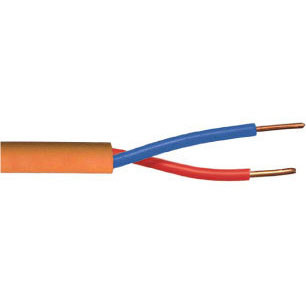

14/2 Hunter Decoder Cable Orange, Jacketed Wire

$289.99
SKU:
HU142JKO-500
Quantity:

Product Description

HUNTER JACKETED
DECODER CABLES
DIRECT BURIAL

SIZES: 14, SOLID COPPER, 2-CONDUCTOR

P7350D
1.0 SCOPE
  1.1 This specification covers jacketed cables containing two listed Sprinkler Systems Wires, single conductor, suitable for direct burial, for operation up to 600 volts, and temperatures up to 60ºC.

2.0 CONSTRUCTION:
  2.1 Inner Conductors:
    Soft drawn bare copper meeting the requirements of ASTM specification B-3 or B-8. Insulation shall be low density high molecular weight polyethylene and a thickness of 0.045", per Paige Electric specification P7079D. The two conductors (blue and red) shall be twisted with a minimum lay of 4".
  2.2 Overall jacket:
    High density polyethylene with a thickness of 0.035". Available with different color jackets. The jacket shall be sufficiently round, and loose, to facilitate its removal when being stripped. Minimum inner diameters of the outer jacket:

CONSTRUCTIONINCHESmm
14 AWG/2c 0.358 9.1
12 AWG/2c 0.386 9.8




A "T" drill bit, whose diameter is 0.358", shall be used to measure the minimum inner diameter of 14 AWG/2c cables.

A "W" drill bit, whose diameter is 0.386", shall be used to measure the minimum inner diameter of 12 AWG/2c cables.

  2.3 Surface Print:
    2.31 Inner Conductors – “Paige Electric P7079D 14 AWG PE Listing file Number 600V Sprinkler System Direct Burial”
    2.32 Outer Jacket – “Paige Electric, P7354D, 14 or 12 AWG PE 600V Sprinkler System Wire Direct Burial Only for Hunter Decoder Systems RoHS”

3.0 TEMPERATURE RATING
  3.1 Color Code:
    -55ºC to +60ºC

4.0 PUT-UPS
  4.1 1000' (328m), 2500' (762m) and some odd lengths.

5.0 SPLICING RECOMMENDATIONS
  Wire splices are the weak link of any electrical circuit. It is especially important to make proper joints in irrigation systems because the joints are exposed to wet and damp environments that can cause corrosion of the copper conductor, and premature failure. Paige Electric recommends the strict use of Model DBR/Y-6, as manufactured by the 3M Company (Paige specification P7364D).

PAIGE PART NO.SIZEJACKET
COLOR
SHIPPING WEIGHT
AWGmm²Lbs/1000'Kg/328m
170801BU 14 2,08 Blue 65 30
170801GY Gray
170801PR Purple
170801YL Yellow
170801OG Orange
170801TN Tan
170801RD Red
170802BU 12 3,32 Blue 80 36
170802GY Gray
170802PR Purple
170802YL Yellow
170802OG Orange
170802TN Tan
170802RD Red
